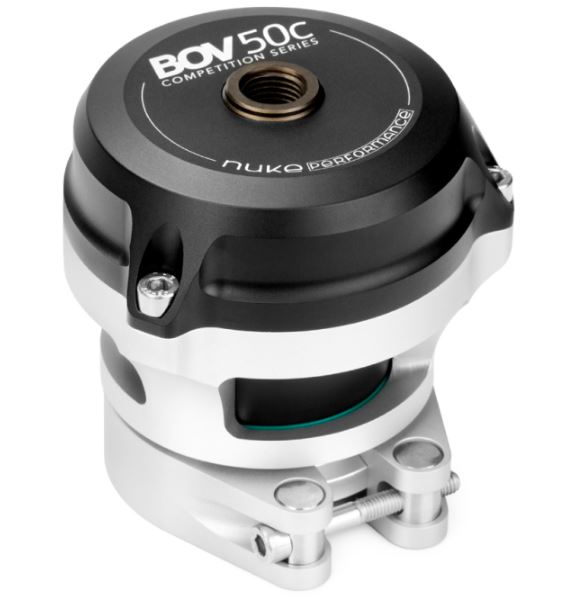

50mm. Avblåsningsventil med v-bandfläns - Nuke-prestanda

Tillverkare: Nuke Performance

Stor avstängningsventil med V-bandanslutning.

Artikelnr: 1.00155.06-920-01-101

Lagerstatus 1 st i lager

Stock status explained
Lagerstatus	Her vises det antal vi har på vores lager i Ringkøbing
Bestillingsvare	Bestillingsvare bestilles hjem når du ligger en order ved os - Leveringstid kan variere
Antal varer på vej hjem fra leverandør*	Varen er bestilt ved vores leverandør - Forventet leveringsdato er hvornår vi forventer at have den på vores lager

€334,41 inkl moms

Antal:

i h

Overview
Contact Us

The second-generation Blow Off Valve from Nuke Performance, with cutting-edge function and an even quicker response. Highest possible flow capacity and unmatched performance.

The BOV50c is the upgraded version of the classic Blow Off Valves from Nuke Performance. Uses the same flange as the old one, a quick and easy swap with no need for new intake pipes. Its 50mm (1.97") valve and superior enhanced diaphragm ensure swift response and precise boost release.

Enhanced reinforced diaphragm technology
Swift response and precise boost release
Billet aluminum V-Band clamp and flange are included
1/4 BSPP top-mounted vacuum port
Interchangeable setup spring, support 250 to 1600hp+
Lightweight Blow Off Valve for motorsport installations

Equipped with a low friction valve guidance, the Blow Off Valve BOV50c V-Band offers an extremely swift response and is ready for some serious boost and power. We believe this upgraded version of the popular first-generation dump valve has the highest flow capacity for an atmospheric blow-off valve.

Connection	V-Band (clamp and aluminum flange included)
Internal design	50mm valve with reinforced diaphragm
Vacuum port thread	1/4" BSPP
Pre-set spring installed	-0.53 to -0.65 BAR (-16 to -19 inHg)
Height	78.7mm (3.09") *
Diameter	81.6mm (3.21") *
Weight	435g (15.34oz) *
For motorsports use	YES
Replaces old part #	900-01-201 / 900-02-201 **
Part #	920-01-101
EAN	7340209507454

* all measurements without the included V-Band flange and clamp
** first generation BOV50, both V-Band and Hose connection versions

BOV50c Spring Pressure Chart
Measure the engine vacuum at idle and with the engine at operating temperature.

Superchargers Only	Light Gray Spring # 9200-01-016 **
-0.27 to -0.39 BAR (-8 to -11 inHg)	Green Spring # 9200-01-017
-0.40 to -0.52 BAR (-12 to -15 inHg)	Magenta Spring # 9200-01-018
-0.53 to -0.65 BAR (-16 to -19 inHg)	Blue Spring # 9200-01-019 *
-0.66 to -0.75 BAR (-20 to -21 inHg)	Red Spring # 9200-01-020
-0.73 to -0.79 BAR (-22 to -23 inHg)	Black Spring # 9200-01-021
