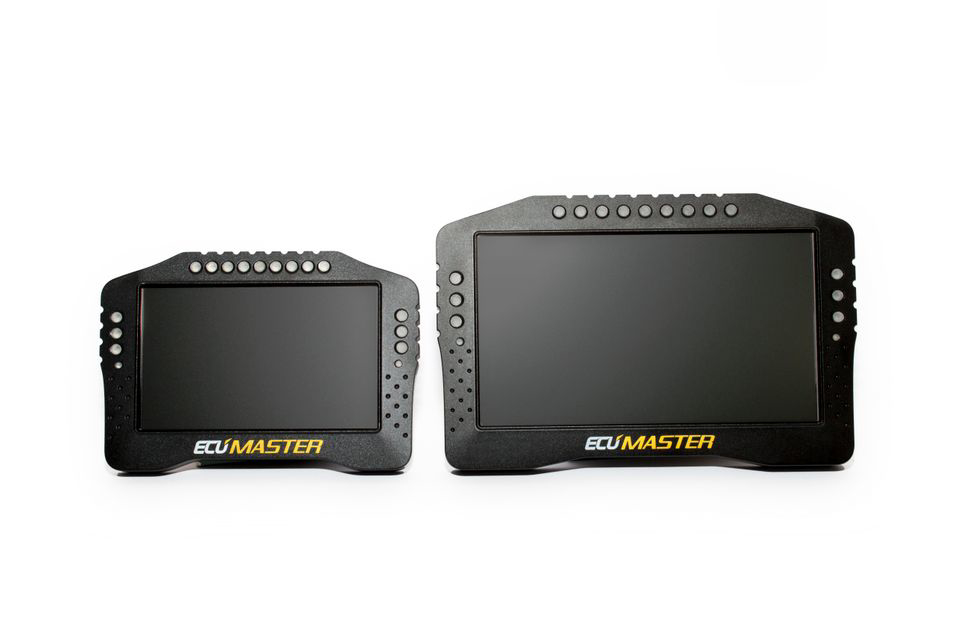

Bild på ECU Master ADU

ECU Master ADU

Tillverkare: ECU Master

5" & 7"

Grouped Product 0Types Available

Overview
Contact Us

General:

Temperature range	AECQ100 GRADE1 (-40 to +85degrees C
Reverse battery protection	Yes, internal
Operating voltage	6-22V, immunity to transients accotrding to ISO 7637
Enclosure	IP 60, custom CNC machined aluminium
Connectors	1x35 positions, AMP Automotive connector
PC communication	CAN BUS - ECUmaster interface, Peak or Kvaser
Display type	TFT 800x480
Brightness of display	5" - 600cd/m2, 7" - 1000 cd/m2

Inputs / outputs

Analogue inputs	8 inputs, 10 bits, 0-5V, software controlled pull-up/pull-down 10k resistor. Al analog inputs can be used as switches
Digital inputs	8 digital inputs, software controlled input sensitivity (VR, Hall), software controlled 4K7 pull-up resistors, used for engine speed sensors, Flex Fuel, wheel speeds, turbocharger shaft speed. All digital inputs can be used as switches
Outputs	2 low side outputs (switch to ground), up to 2A, 1 analogue output (0.5V) 10 bits
+5V Output	Monitored 5V output for powering external sensors

Namn *

Din e-post *

Förfrågan *

Bild på ECU Master ADU - 5"

ECU Master ADU - 5"

Lagerstatus Tillfälligt slut - skickas när den finns i lager.

€1165,74 inkl moms

Antal:

i h

Bild på ECU Master ADU - 7"

ECU Master ADU - 7"

Artikelnr: ADU

Lagerstatus Tillfälligt slut - skickas när den finns i lager.

€1474,10 inkl moms
